Introduction to Arrow in R

R-Ladies Ottawa Workshop (10 April 2024)

Introductions

• Steph Hazlitt
• Nic Crane

Arrow contributors!

Have participants introduce themselves in the chat

Welcome

Today we’re going to cover:

• Working with larger-than-memory datasets with Arrow
• How to get the best performance with your tabular data
• Where to find more information

Workshop format

• Slides available at https://tinyurl.com/arrowrladiesottowa
• Follow-along coding
• Time to ask questions

• feel free to ask questions as we go along!

Getting set up

Repository URL: https://github.com/thisisnic/introtoarrowrladiesottowa

Dataset to follow along with

options(timeout = 1800)
download.file(
  url = "https://r4ds.s3.us-west-2.amazonaws.com/seattle-library-checkouts.csv",
  destfile = "./data/seattle-library-checkouts.csv"
)

• dataset from R For Data Science
• run this from within the project you’ve got set up
• first line of code increase the download timeout to 30 mins - essential when downloading larger datasets
• if you don’t have the data yet, download it now - next section talking about arrow

Backup option - Posit Cloud & Tiny Dataset

https://posit.cloud/spaces/463702/content/7918787

Part 1 - Arrow

• any questions before we get started?
• this section will cover a bit of background info about Apache Arrow

What is Apache Arrow?

A multi-language toolbox for accelerated data interchange and in-memory processing

Arrow is designed to both improve the performance of analytical algorithms and the efficiency of moving data from one system or programming language to another

https://arrow.apache.org/overview/

• TODO: add main points want to hit here

Apache Arrow Specification

In-memory columnar format: a standardized, language-agnostic specification for representing structured, table-like datasets in-memory.

• brief overview of these points but coming back to later

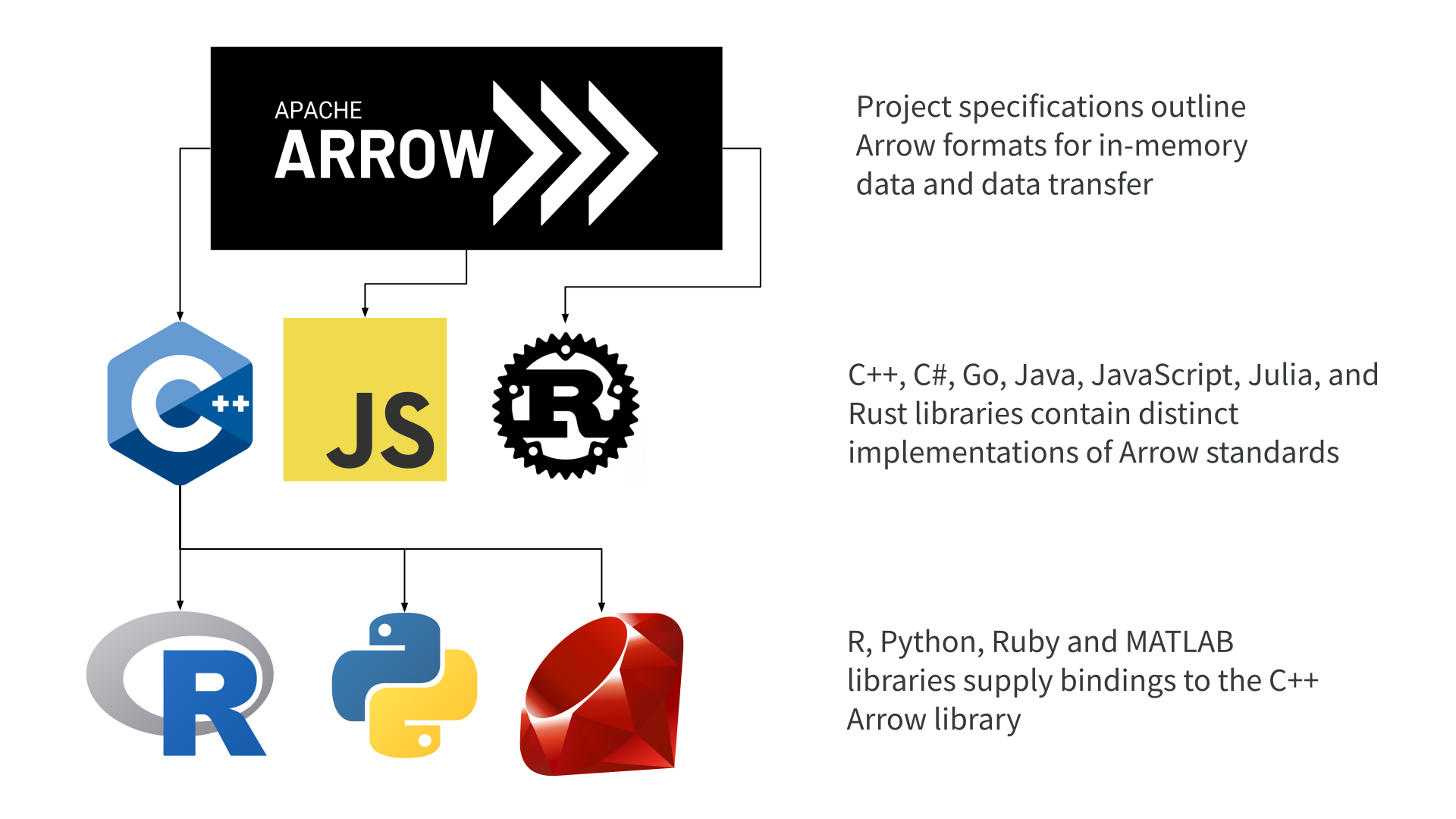

A Multi-Language Toolbox

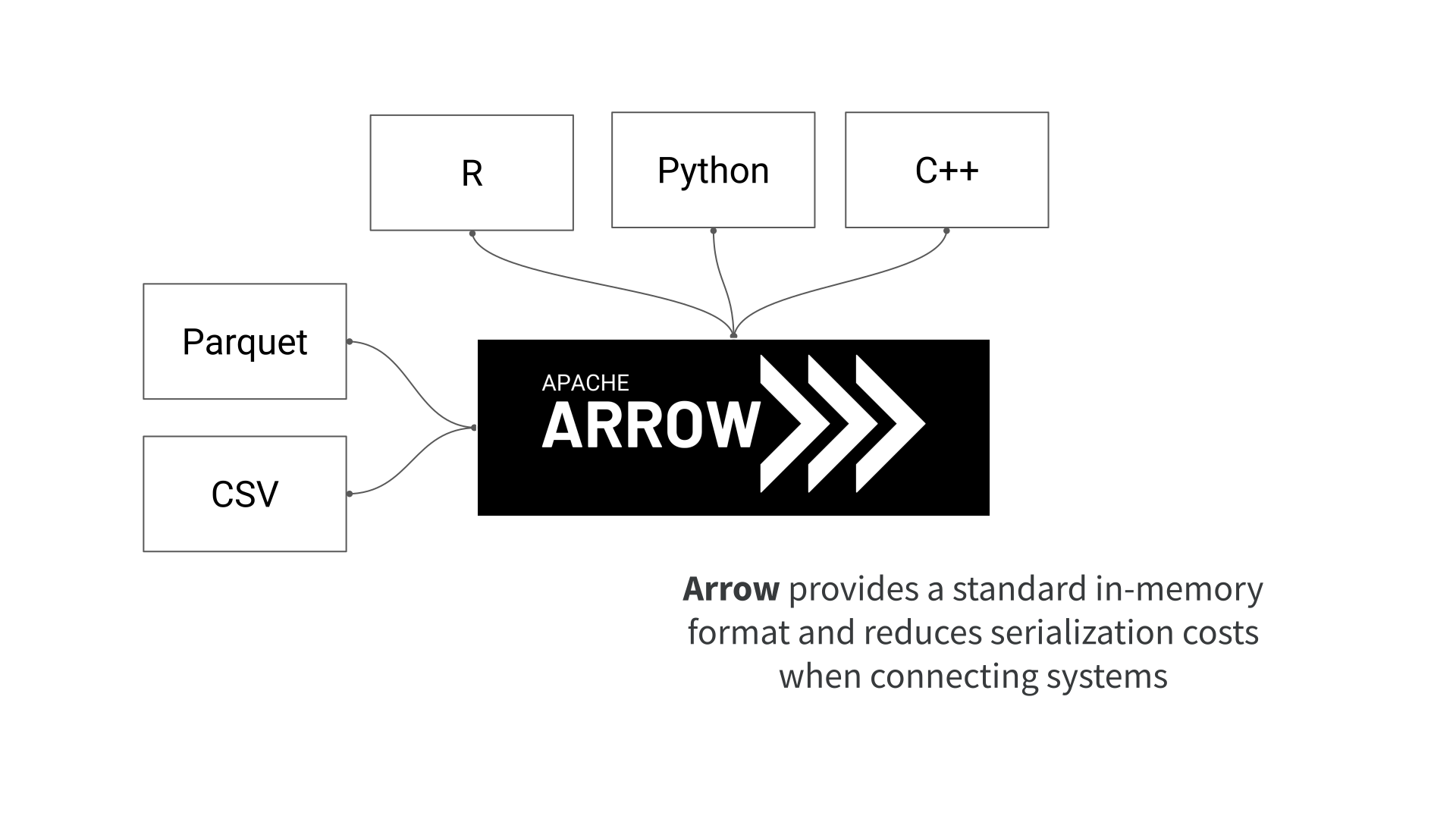

Accelerated Data Interchange

• standardisation means multiple things speaking Arrow prevents copying back and forth

Accelerated In-Memory Processing

Arrow’s Columnar Format is Fast

• intro the toy dataset
• memory buffers are a 1-dimension structure, not like a 2D table/data.frame
• walk through this in the 2 diagrams
• analytic workflows typically have filtering, grouping by columns etc; give examples
• faster to scan adjacent areas than picking through it all + taking advantage of vectorization available on modern processes speeds up faster

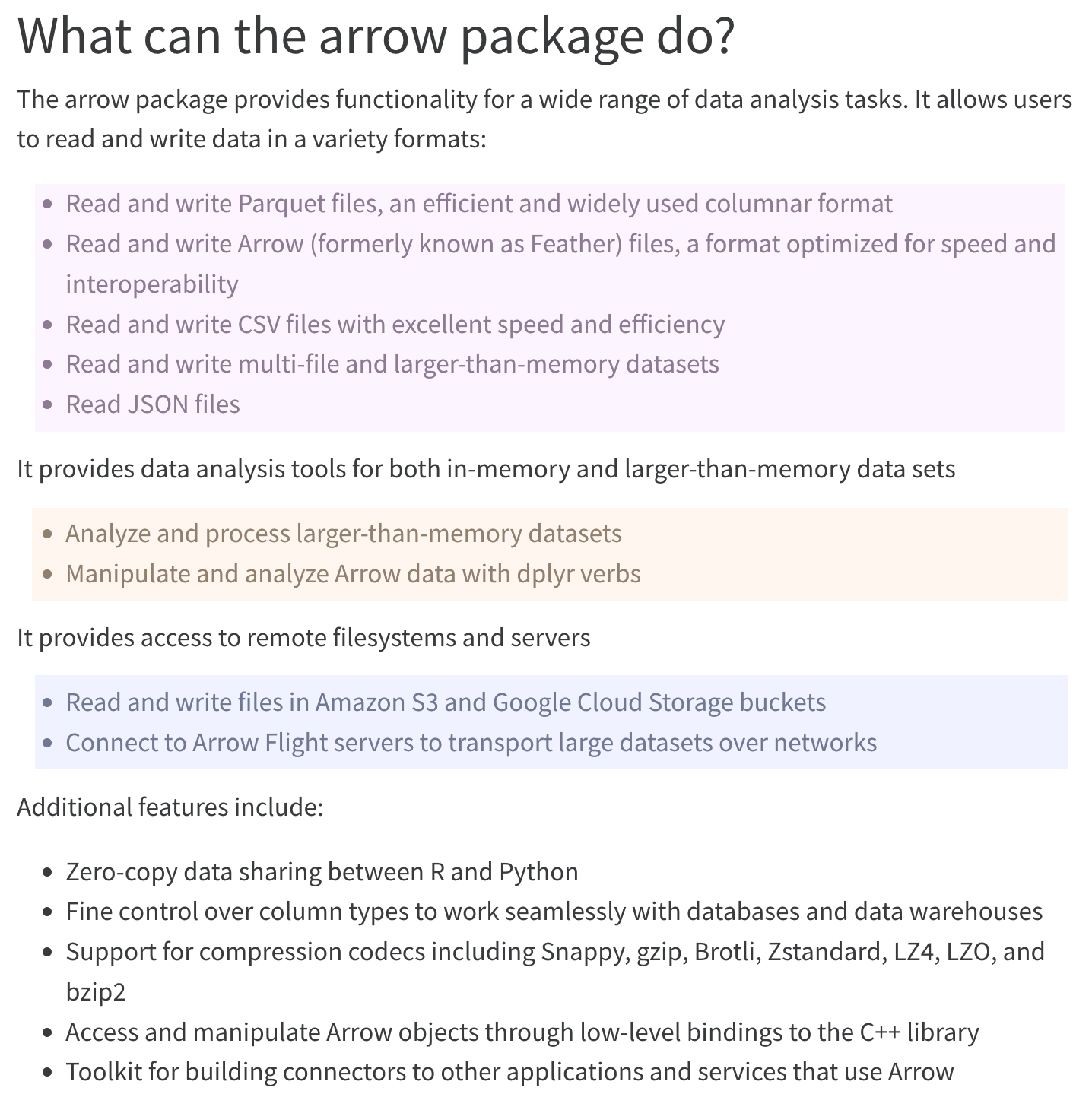

arrow 📦

arrow 📦

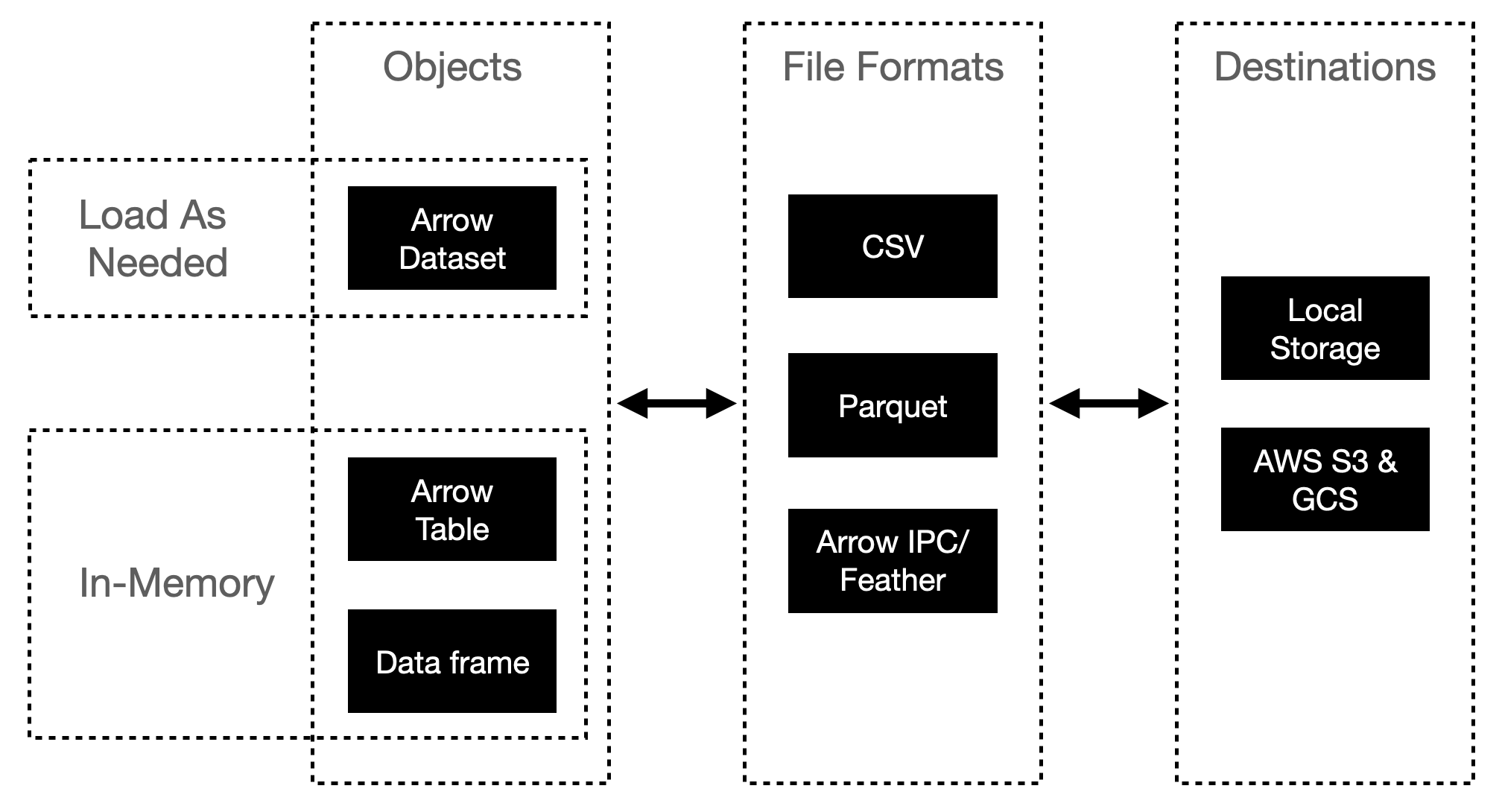

• different types of objects
• different file formats
• different storage locations

Part 2 - Working with Arrow Datasets

• any questions so far?
• maybe a poll - who’s worked with dplyr/arrow/parquet before?

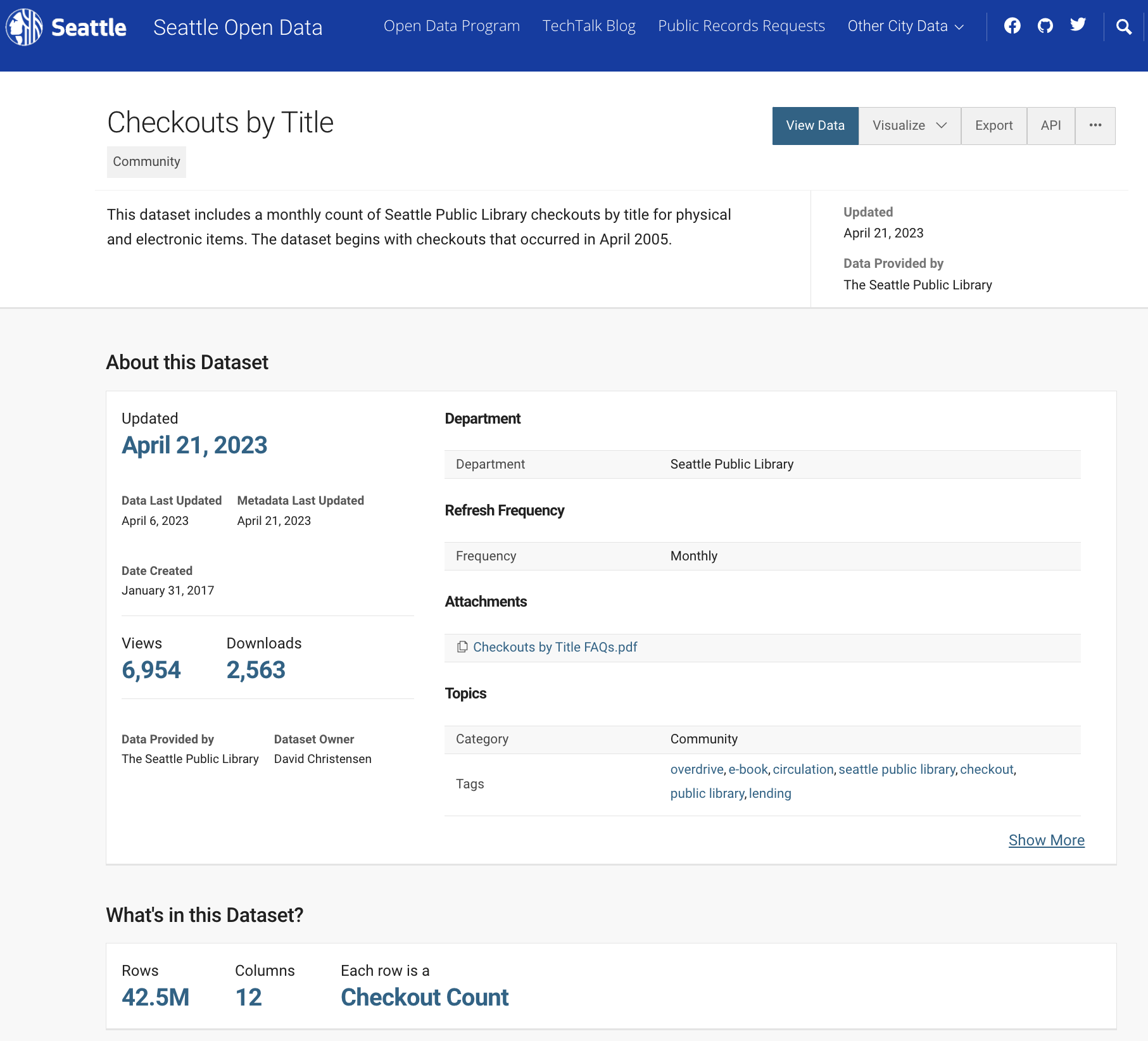

Seattle Checkouts - Big CSV

https://data.seattle.gov/Community/Checkouts-by-Title/tmmm-ytt6/about_data

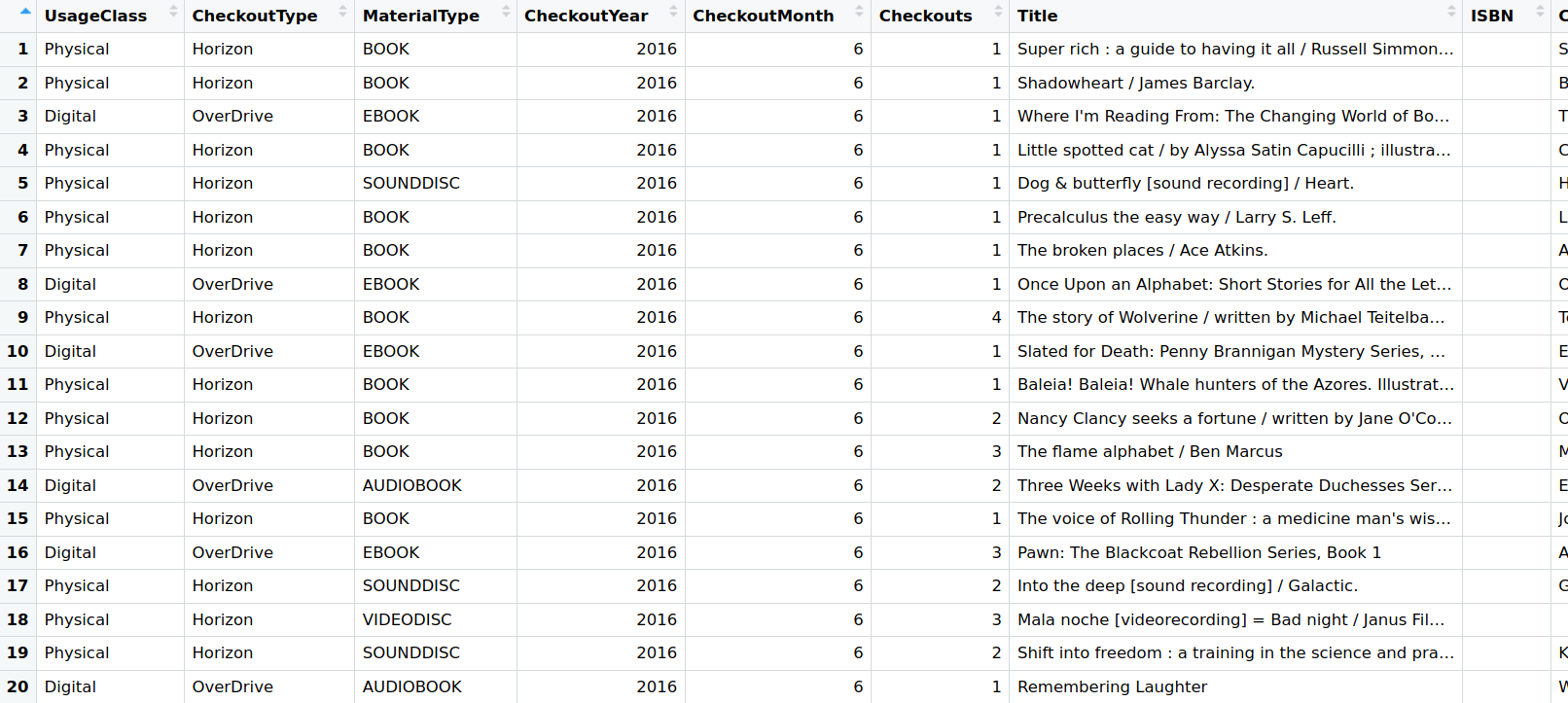

Dataset contents

• LIVE CODING
  • path to the data depending on where you’ve downloaded it
  • impact of data size on performance
  • walk through subcomponents of the output when print the seattle_csv object
    • explicitly mention the term “schema”
    • string and character are direct equivalents
    • why we have e.g. 64-bit integers
    • arrow automatically handles the conversion between R and Arrow data types
  • these types have been guessed from first 1MB of rows (can’t say how many as varies with ncol)
  • can anyone spot something odd here?
  • what is an ISBN; what is the null type?
  • pulling out the schema
  • updating the schema
  • using the e.g. string() functions to create different data types and where in the docs?
  • show both schema updating and col_types
  • checking out the new schema
  • how often is this necessary? Often not. Good practice. Only important with CSVs not Parquet.
  • run glimpse() but remember it’ll take a moment
    • TODO: find something to talk about here or don’t use glimpse!
    • 42 millions rows
    • UsageClass column data
    • ISBN column data
    • PublicationYear + why it’s a string
• Recap this section!
• Questions?

How big is the dataset?

library(arrow)
library(dplyr)
file.size("./data/seattle-library-checkouts.csv") / 10 **9

[1] 9.211969

Opening in Arrow

seattle_csv <- open_dataset(
  sources = "./data/seattle-library-checkouts.csv",
  format = "csv"
)

How many rows of data?

nrow(seattle_csv)

[1] 41389465

Extract schema

schema(seattle_csv)

Schema
UsageClass: string
CheckoutType: string
MaterialType: string
CheckoutYear: int64
CheckoutMonth: int64
Checkouts: int64
Title: string
ISBN: null
Creator: string
Subjects: string
Publisher: string
PublicationYear: string

Arrow Data Types

Arrow has a rich data type system, including direct analogs of many R data types

• <dbl> == <double>
• <chr> == <string> or <utf8>
• <int> == <int32>

https://arrow.apache.org/docs/r/articles/data_types.html

Parsing the Metadata

Arrow scans 👀 1MB of the file(s) to impute or “guess” the data types

📚 arrow vs readr blog post: https://thisisnic.github.io/2022/11/21/type-inference-in-readr-and-arrow/

Parsers Are Not Always Right

schema(seattle_csv)

Schema
UsageClass: string
CheckoutType: string
MaterialType: string
CheckoutYear: int64
CheckoutMonth: int64
Checkouts: int64
Title: string
ISBN: null
Creator: string
Subjects: string
Publisher: string
PublicationYear: string

International Standard Book Number (ISBN) is a 13-digit number that uniquely identifies books and book-like products published internationally.

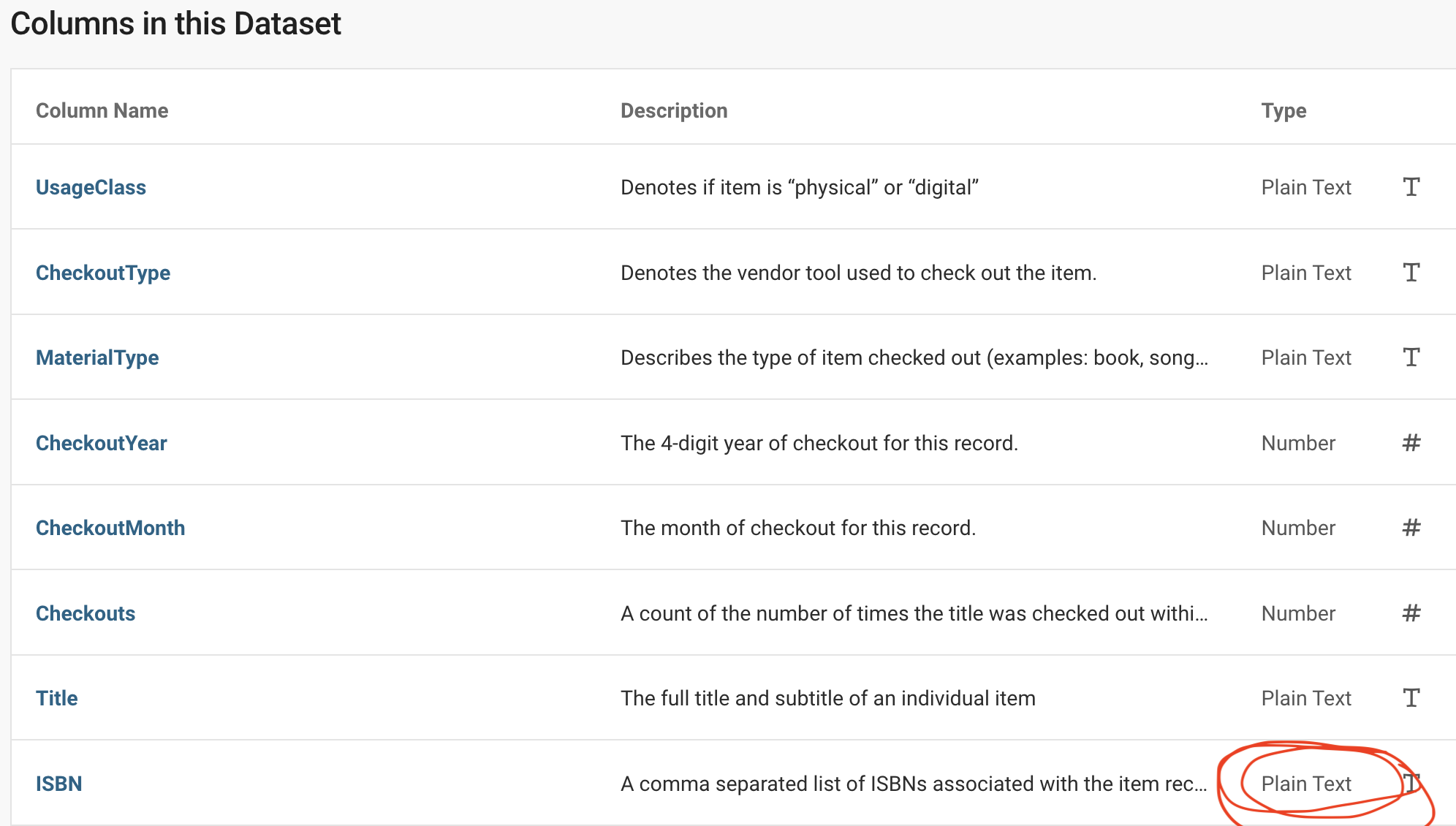

Data Dictionaries, metadata in data catalogues should provide this info.

Let’s Control the Schema

seattle_csv <- open_dataset(
  sources = "./data/seattle-library-checkouts.csv",
  col_types = schema(ISBN = string()),
  format = "csv"
)

schema(seattle_csv)

Schema
UsageClass: string
CheckoutType: string
MaterialType: string
CheckoutYear: int64
CheckoutMonth: int64
Checkouts: int64
Title: string
ISBN: string
Creator: string
Subjects: string
Publisher: string
PublicationYear: string

Part 3 - Data Manipulation with Arrow

• <Up to here was about 28 mins in first practice run (no time for questions)>
• Question - how many people here have used dbplyr to connect to a database in R?

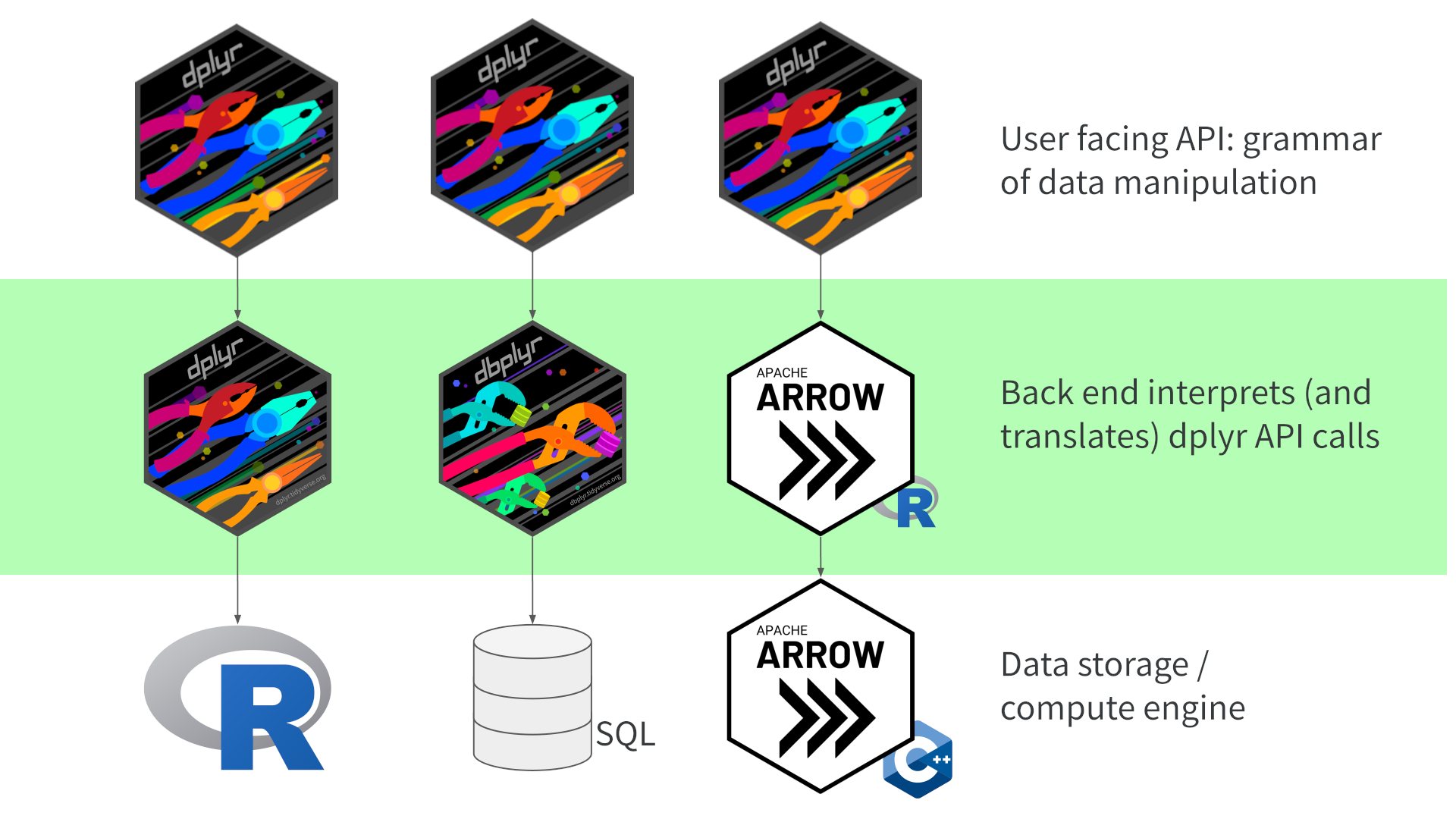

Arrow dplyr backend

LIVE CODING - Data contains book, ebooks, things which aren’t book - Do not call collect() after first query - talk about lazy eval and show the query - endsWith to ends_with; this is actually an arrow C++ lib func - Don’t want to pull all into memory as it’s a lot of data; preview using head - Now look at the outputs of that - Next: How many books and ebooks were checked out each year? - Don’t need to call head() to preview as the data returned is just a row for each year - Run again with a timer set, then walk through results - Walk through the data, drop in 2020 - pandemic? - Not bad, it can be faster and this is what we’ll talk about in part 3 RECAP - Any questions?

Querying the data - new column: is this a book?

seattle_csv |>
  mutate(IsBook = endsWith(MaterialType, "BOOK")) |>
  select(MaterialType, IsBook)

FileSystemDataset (query)
MaterialType: string
IsBook: bool (ends_with(MaterialType, {pattern="BOOK", ignore_case=false}))

See $.data for the source Arrow object

Nothing is pulled into memory yet!

Preview the query

seattle_csv |>
  head(20) |>
  mutate(IsBook = endsWith(MaterialType, "BOOK")) |>
  select(MaterialType, IsBook) |>
  collect()

# A tibble: 20 × 2
   MaterialType IsBook
   <chr>        <lgl>
 1 BOOK         TRUE
 2 BOOK         TRUE
 3 EBOOK        TRUE
 4 BOOK         TRUE
 5 SOUNDDISC    FALSE
 6 BOOK         TRUE
 7 BOOK         TRUE
 8 EBOOK        TRUE
 9 BOOK         TRUE
10 EBOOK        TRUE
11 BOOK         TRUE
12 BOOK         TRUE
13 BOOK         TRUE
14 AUDIOBOOK    TRUE
15 BOOK         TRUE
16 EBOOK        TRUE
17 SOUNDDISC    FALSE
18 VIDEODISC    FALSE
19 SOUNDDISC    FALSE
20 AUDIOBOOK    TRUE

How many books were checked out each year?

seattle_csv |>
  filter(endsWith(MaterialType, "BOOK")) |>
  group_by(CheckoutYear) |>
  summarise(Checkouts = sum(Checkouts)) |>
  arrange(CheckoutYear) |>
  collect()

# A tibble: 18 × 2
   CheckoutYear Checkouts
          <int>     <int>
 1         2005   2129128
 2         2006   3385869
 3         2007   3679981
 4         2008   4156859
 5         2009   4500788
 6         2010   4389760
 7         2011   4484366
 8         2012   4696376
 9         2013   5394411
10         2014   5606168
11         2015   5784864
12         2016   5915722
13         2017   6280679
14         2018   6831226
15         2019   7339010
16         2020   5549585
17         2021   6659627
18         2022   6301822

How long did it take?

seattle_csv |>
  filter(endsWith(MaterialType, "BOOK")) |>
  group_by(CheckoutYear) |>
  summarise(Checkouts = sum(Checkouts)) |>
  arrange(CheckoutYear) |>
  collect() |>
  system.time()

   user  system elapsed
 14.849   1.162  13.149

42 million rows – not bad, but could be faster….

Part 4 - Engineering the Data

.NORM Files

https://xkcd.com/2116/

File Format: Apache Parquet

https://parquet.apache.org/

• While CSVs widely used common format, Parquet is a popular format for bigger data
• optimised for analytics workflows

Parquet Files: “row-chunked”

Parquet Files: “row-chunked & column-oriented”

Parquet

• compression and encoding == usually much smaller than equivalent CSV file, less data to move from disk to memory
• rich type system & stores the schema along with the data == more robust pipelines
• “row-chunked & column-oriented” == work on different parts of the file at the same time or skip some chunks all together, better performance than row-by-row

Writing to Parquet

seattle_parquet_dir <- "./data/seattle-library-checkouts-parquet"

seattle_csv |>
  write_dataset(path = seattle_parquet_dir, format = "parquet")

Storage: Parquet vs CSV

file <- list.files(seattle_parquet_dir,
                   recursive = TRUE,
                   full.names = TRUE)

file.size(file) / 10 ** 9

[1] 4.423348

Parquet about half the size of the CSV file on-disk 💾

4.5GB Parquet file + arrow + dplyr

open_dataset(seattle_parquet_dir,
             format = "parquet") |>
  filter(endsWith(MaterialType, "BOOK")) |>
  group_by(CheckoutYear) |>
  summarise(Checkouts = sum(Checkouts)) |>
  arrange(CheckoutYear) |>
  collect() |>
  system.time()

   user  system elapsed
  6.647   0.391   1.033

42 million rows – much better! But could be even faster….

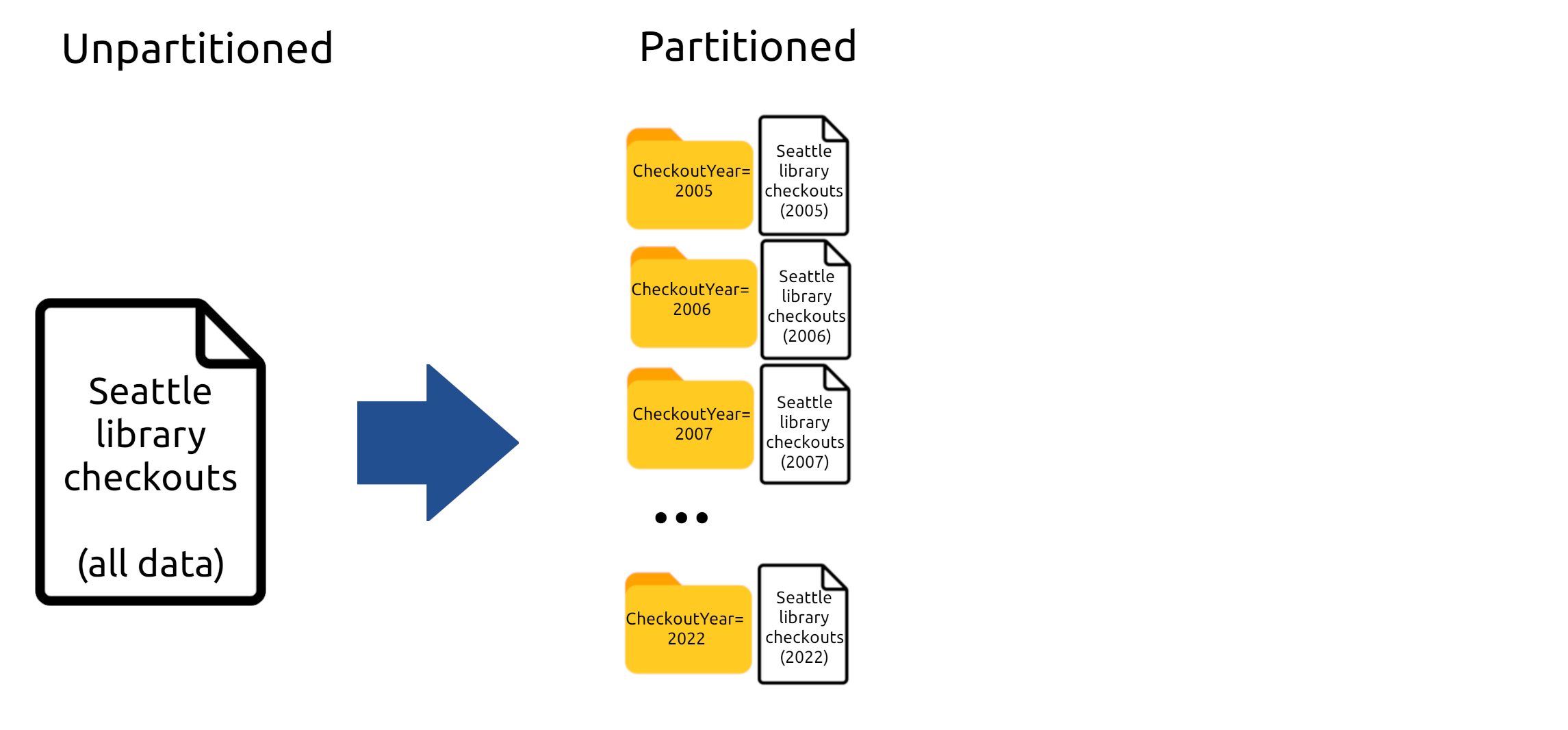

File Storage: Partitioning

Dividing data into smaller pieces, making it more easily accessible and manageable

also called multi-files or sometimes shards

Poll: Partitioning?

Have you partitioned your data or used partitioned data before today?

• 1️⃣ Yes
• 2️⃣ No
• 3️⃣ Not sure, the data engineers sort that out!

Rewriting the Data Again

seattle_parquet_part <- "./data/seattle-library-checkouts"

seattle_csv |>
  group_by(CheckoutYear) |>
  write_dataset(path = seattle_parquet_part,
                format = "parquet")

What Did We “Engineer”?

seattle_parquet_part <- "./data/seattle-library-checkouts"

sizes <- tibble(
  files = list.files(seattle_parquet_part,
                     recursive = TRUE),
  size_GB = round(file.size(file.path(seattle_parquet_part, files)) / 10**9, 3)
)

sizes

# A tibble: 18 × 2
   files                            size_GB
   <chr>                              <dbl>
 1 CheckoutYear=2005/part-0.parquet   0.114
 2 CheckoutYear=2006/part-0.parquet   0.172
 3 CheckoutYear=2007/part-0.parquet   0.186
 4 CheckoutYear=2008/part-0.parquet   0.204
 5 CheckoutYear=2009/part-0.parquet   0.224
 6 CheckoutYear=2010/part-0.parquet   0.233
 7 CheckoutYear=2011/part-0.parquet   0.25
 8 CheckoutYear=2012/part-0.parquet   0.261
 9 CheckoutYear=2013/part-0.parquet   0.282
10 CheckoutYear=2014/part-0.parquet   0.296
11 CheckoutYear=2015/part-0.parquet   0.308
12 CheckoutYear=2016/part-0.parquet   0.315
13 CheckoutYear=2017/part-0.parquet   0.319
14 CheckoutYear=2018/part-0.parquet   0.306
15 CheckoutYear=2019/part-0.parquet   0.302
16 CheckoutYear=2020/part-0.parquet   0.158
17 CheckoutYear=2021/part-0.parquet   0.24
18 CheckoutYear=2022/part-0.parquet   0.252

4.5GB partitioned Parquet files + arrow + dplyr

seattle_parquet_part <- "./data/seattle-library-checkouts"

open_dataset(seattle_parquet_part,
             format = "parquet") |>
  filter(endsWith(MaterialType, "BOOK")) |>
  group_by(CheckoutYear) |>
  summarise(Checkouts = sum(Checkouts)) |>
  arrange(CheckoutYear) |>
  collect() |>
  system.time()

   user  system elapsed
  6.020   0.409   0.734

42 million rows – not too shabby!

Art & Science of Partitioning

• avoid files < 20MB and > 2GB
• avoid > 10,000 files (🤯)
• partition on variables used in filter()

• guidelines not rules, results vary
• experiment
• arrow suggests avoid files smaller than 20MB and larger than 2GB
• avoid partitions that produce more than 10,000 files (Arrow reads the metadata of each file)
• partition by variables that you filter by, allows arrow to only read relevant files

Performance Review: Single CSV

How long does it take to calculate the number of books checked out in each month of 2021?

open_dataset(sources = "./data/seattle-library-checkouts.csv",
             format = "csv") |>
  filter(CheckoutYear == 2021, endsWith(MaterialType, "BOOK")) |>
  group_by(CheckoutMonth) |>
  summarize(TotalCheckouts = sum(Checkouts)) |>
  arrange(desc(CheckoutMonth)) |>
  collect() |>
  system.time()

   user  system elapsed
 14.601   2.092  13.502

Performance Review: Partitioned Parquet

How long does it take to calculate the number of books checked out in each month of 2021?

open_dataset("./data/seattle-library-checkouts",
             format = "parquet") |>
  filter(CheckoutYear == 2021, endsWith(MaterialType, "BOOK")) |>
  group_by(CheckoutMonth) |>
  summarize(TotalCheckouts = sum(Checkouts)) |>
  arrange(desc(CheckoutMonth)) |>
  collect() |>
  system.time()

   user  system elapsed
  0.407   0.037   0.086

Engineering Data Tips for Improved Storage & Performance

• use Parquet over CSV if possible
• consider partitioning, experiment to get an appropriate partition design 🗂️
• watch your schemas 👀

Part 5 - More Resources

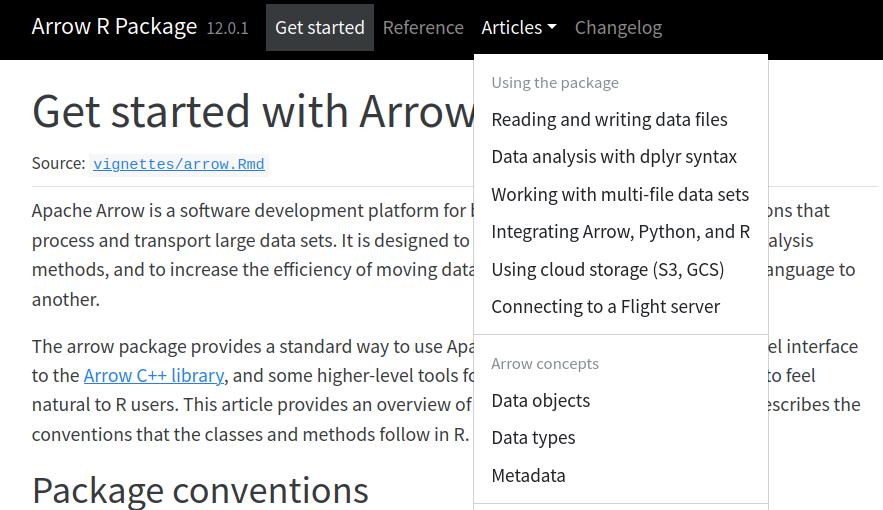

Arrow docs

https://arrow.apache.org/docs/r/

R for Data Science (2e)

Chapter 23: Arrow

https://r4ds.hadley.nz/

Scaling Up with R and Arrow

Currently being written - preview available online soon!
